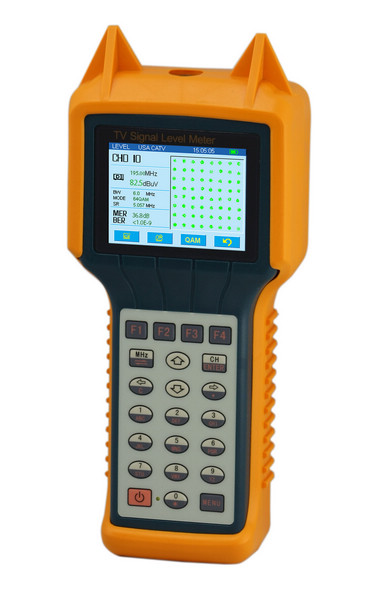

Digital Signal Level Meter/DVB-C Analyzer

RA2009D

RA2009D - Analog, digital channel power, digital QAM analysis MER/BER, Constellations;

ITU-TJ.83-AnnexB supported, available for USA and other America markets.

RA2009D comes with a solution that can handle digital TV and maintain the analog spectrum, enable technicians to use it in the most demanding situations with a single, rugged instrument, wherever it is needed.

The new QAM View digital analysis option adds forward path digital signal testing that includes constellation, pre/post FEC BER, MER.

Analog signal measurements are addressed with standard features like RF signal level, full scan, TILT, in-service C/N, A/V, and FCC compliant autotesting.

The RA2009D is designed to provide ideal solution for cable TV network, to ensure that on-site technicians are fully equipped with the optimal equipment they need to make rapid and accurate analysis.

Features:
•Upgraded LCD
The meter has a 320*240 enlarged color LCD and the new screen graphics enhance readability and simplify operations.



•Ideal for digital and analog network
Enables analysis and quality measurements of digital TV and analog TV. Enables easy preparation of networks for interactive services with a 5 to 870MHz fast, sensitive spectrum analyzer.



•Digital measurement

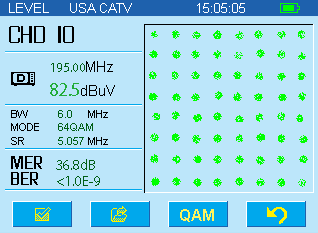

The meter lets you take the direct measurement of QAM signals average power measurement, digital analysis option is available for forward path digital signal testing that includes pre/post FEC BER, MER, constellation.

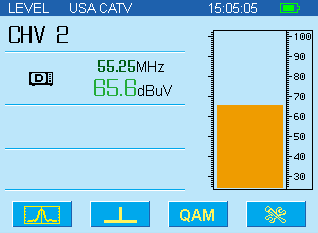

•Analog measurement

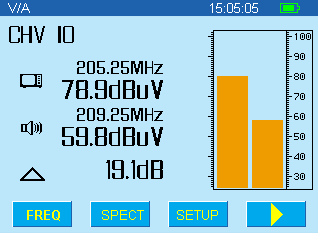

The meter can display all channels in a single view. Amplitude measurement is displayed individually, as a group, or as a full-span display. Direct channel input of channel numbers, simultaneously displays video carrier and audio carrier strength, and V/A measurement. Tilt measurement of 5-12 user definable channels. Carrier-to noise ratio measurement, trunk voltage measurement.



•Single channel spectrum
It features a single-channel spectrum mode which displays the presence of interfering beats in addition to carrier.



•Limit and auto measurement

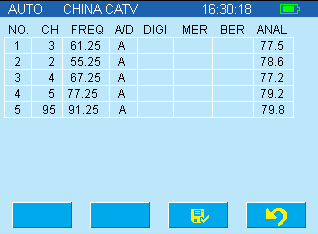

Limit measurement and automated FCC proof of performance test, Auto measurement



•Up to 10 learned channel plans, changeable through PC, also has 2 user defined channel plans, available to define the favorite channels from basic channel plan.



•TILT measurement can set 12 channels at most, up to 12 tests results can be shown in a same screen.



•Data logging
The meter can save files for level, spectrum, scan, limit test and auto-test measurements, these files can be recalled to view the recorded data via RS-232C port.



•PC managing software
The PC managing software can upload the files saved in the meter to PC and view the file.



•Durable and compact
It’s durable, simple to use in a wide range of conditions. The tough plastic shell and protective jacket make it highly resistant to damage from shock and impact.

•High performance batter
Battery-powered handheld model, Internal NiMH battery with included charger. Battery life: ≈5 hours

•Cost effective and efficient
Reduces testing and troubleshooting times for network analysis and qualification.
