AV6416-OTDR
AV6416 OTDR - 28/26/24dB high dynamic range(1310nm/1550nm/1490nm)
AV6416 Palm-OTDR is new Optical Time Domain Reflectometer with integrated VFL(visual fault locator).
AV6416 Palm-OTDR feature handheld, compact, lightweight, long battery life and easy-to-use.
It supports auto test, manual averaging, manual real time test mode. Besides, the AV6416 Palm-OTDR can save and transfer the measurement data to PC.
The AV6416 Palm-OTDR has become the indispensable and ideal tools for fiber
AV6416 OTDR Key features
• Test can be started by pressing a single key.
• 1.6m extra-short event dead zone• Advanced anti-reflection Touchsecreen color LCD, screen optimized for outdoor use.

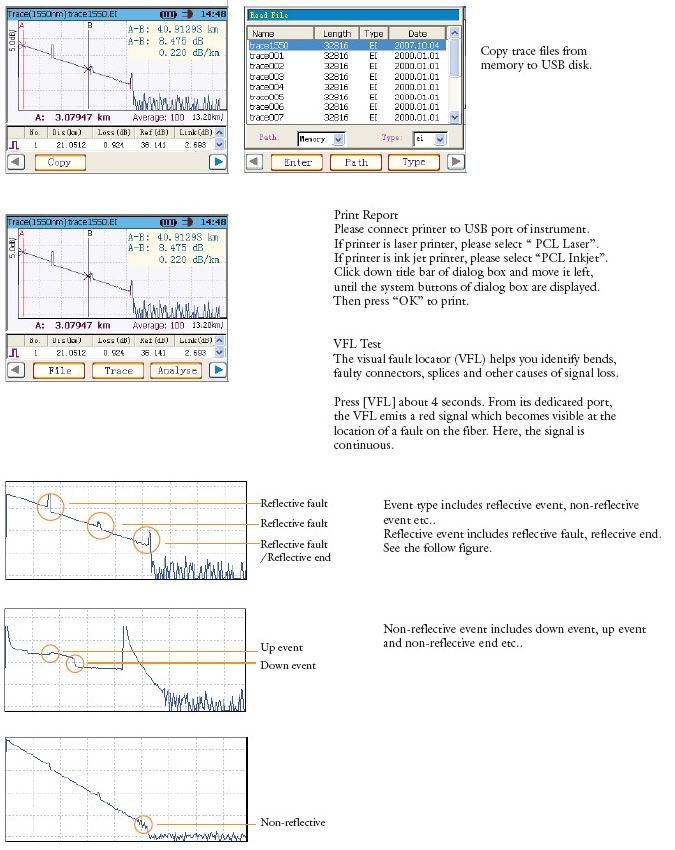

• USB ports(host and client): transfer and print data trace.
• Visual fault locator to inspect fibers.
• Lithium rechargeable battery support over 10 hours.

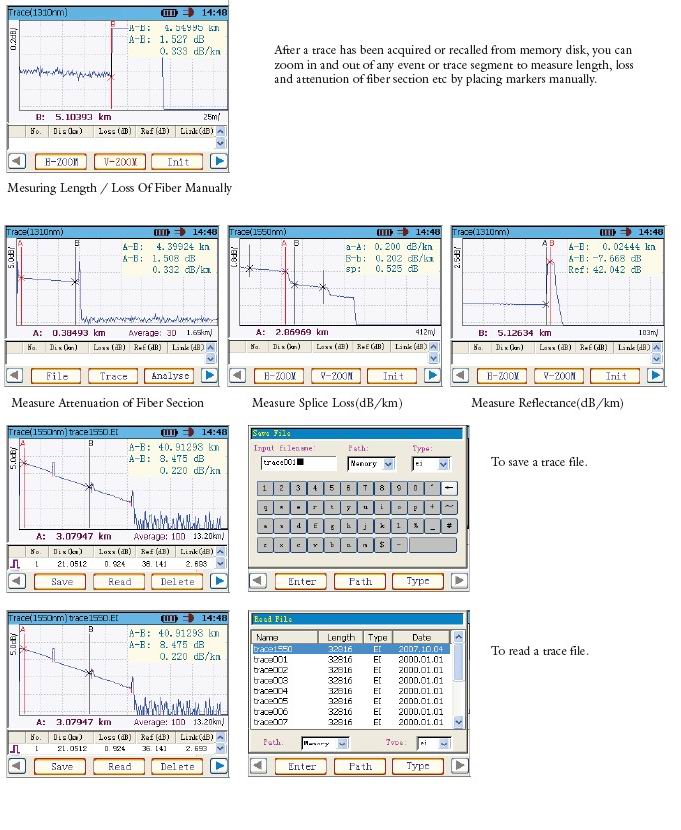

• Memory for 500 OTDR traces and possible data transfer to a computer.
• Support auto test, manual averaging, manual real time test mode.
• Online help function.
• Windows CE operating system, multi-funtional & Scalable
Handheld Optical multimeter is for the installation, operation and maintenance of a fiber optic network designed accurate, durable and portable instrumentation. A compact shape, automatic shutdown feature, wide range of optical power measurement, accurate measurement accuracy, and user self-calibration function and general interface design, while the linear index (mW) and nonlinear index (dBm) display on the same screen.
Stable optical handheld multimeter can be customized to provide 1 to 4 wavelength stability of the output, not only can provide 650nm visible red light, single-mode fiber can be measured to provide dual-wavelength 1310nm and 1550nm laser output, or provide 850/1300 / 1310/1550nm four wavelength laser output, fiber-optic project is the ideal test instrument.
AV6416 OTDR Features
Self calibration by user himself
Rechargeable lithium battery used to reduce user costsLinear (mW) and nonlinear index (dBm) display on the same screen
Can set the automatic shut down function
High stability multi-wavelength single-(multi) mode laser output, CW mode or modulated mode
Color LCD display
Data can be uploaded to PC
AV6416 OTDR Specifications
Power meter parts
| Measurement range | -70～+3 or -50～+26 |
| Type of probe | InGaAs |
| Range of wave length | 800～1700 |
| Uncertainty | ±5% |
| Standard wave length (nm) | 850、980、1300、1310、1490、1550 |
| Resolution | Linear indication: 0.1% Logarithmic indication: 0.01dBm |
| Connector | General setupuration：FC/PC SC/PC |
| Other setupuration | LC/FC/SC/ST Many common interface |
Light source parts
| Model | General setupurations | 3 in 1 setupurations | Other |
| Working wavelength (nm) | 1310/1550 | 1310/1490 650 red light source | D：850/1310/1550 E：1310/1490/1550 F：1310/1550/1625 |
| Light-emitting device | FP-LD | ||
| Optical output power (dBm) | -7/-7 | -7/-7 Red light source：1mW | 0DB-7DB |
| Modulation | CW/270/1K/2K | ||
| Type of optical fiber | SM，MM | ||
| Connector | FC/PC | ||
| Multi-mode output power | ≥–20 dBm | ||
Other
| Resolution | Linear indication: 0.1% Logarithmic indication: 0.01dBm |
| Working temperature (℃) | -16～+60 |
| Storage temperature (℃) | -25～+70 |
| Auto power-off time (min) | 10 |
| Continuous working hours (h) | more then 15 hours |
| Display | 2.4 TFT color LED with backlight |
| Dimensions (mm) | 190×100×48 |
| Power supply | Rechargeable lithium battery |
| Weight (g) | 280 |
Maintenance
Precautions
1. Don’t watch the output port with eyes while it is running, the laser will hurt your eyes2. If you are not going to use the tester for long time, cover the dust-proof cap immediately to keep the end clean, don’t expose it in air for long time, otherwise dust may gather polluting the output end.
3. After the stabilized light source works for a time, dirt or dust may gather at output end reducing output optical power, if so, user can gently wipe the surface using cotton swab dipped with alcohol, then remove the contaminants with dry cotton swab. If end still look dirty after doing so, please contact us
4. For any other fault, please immediately contact our technician, don’t open the cabinet of the device to repair it by yourself, otherwise more serious problems may occur. We will not repair any product that have been disassembled by user himself
